The DewPoint 331 hay steamer is used with two-string, three-string, and round balers.  For the past 4 years, we have been testing the new the DewPoint 331.  At this time we are excited to move the machine into a full market release status for the 2022 season.

Staheli West, Inc.  produced a significant, but still limited number of machines in 2021.  These machines have been operating throughout the Western U.S.  Naturally, there were some bugs and issues that needed to be resolved, but after a lot of effort by our dealers and product development team, we are please to report that all the released machines ended the season strong with minimal problems.

Considering the supply chain issues faced by all suppliers and manufacturers, we are currently taking orders for 2022 machines, with a large majority of those machines already committed.

If you are serious about purchasing a DewPoint 331 steamer for the 2022 or 2023 season, we highly recommend talking to your local product specialist or dealership.

Subscribe to Follow the Bales Hay New Customer Journey

Introducing The DewPoint 331



Introducing The DewPoint 331


The DewPoint 331: For 2-Tie, 3-Tie, and Round Balers


The DewPoint 331 produces steam, which is injected into the hay during the baling process. The steam softens the hay and allows farmers to make high-quality hay day and night without the need for natural dew.

Making Dew in the Desert


Interested in the all-new DewPoint 331 Hay Steamer by Staheli West?

Watch as we take you on the new-customer journey with Bales Hay Sales in Buckeye, Arizona. The Bales are first-time steamer owners, and to make things more interesting, they are also one of Staheli West's first DewPoint 331 customers.


The interview in part 1 was done before Bales Hay Sales had even started operating their steamers. The interview in part 2 was done after Bales Hay Sales had operated their steamers for 5 months.

Will the DewPoint 331 live up to the hype, expectations, and hopes of the Bales Family and their employees? Will it increase the quality of their hay and help them solve their labor issues? What does it take to make this whole thing work? Find out in the Making Dew in the Desert series!

The interview in part 1 was done before Bales Hay Sales had even started operating their steamers. The interview in part 2 was done after Bales Hay Sales had operated their steamers for 5 months.

Will the DewPoint 331 live up to the hype, expectations, and hopes of the Bales Family and their employees? Will it increase the quality of their hay and help them solve their labor issues? What does it take to make this whole thing work? Find out in the Making Dew in the Desert series!

Part 1

Before Bales Hay Sales had started operating their steamers

Part 2

After Bales Hay had operated their steamers for 5 months

Why Use Steam

Wondering Why You Would Use Steam?...

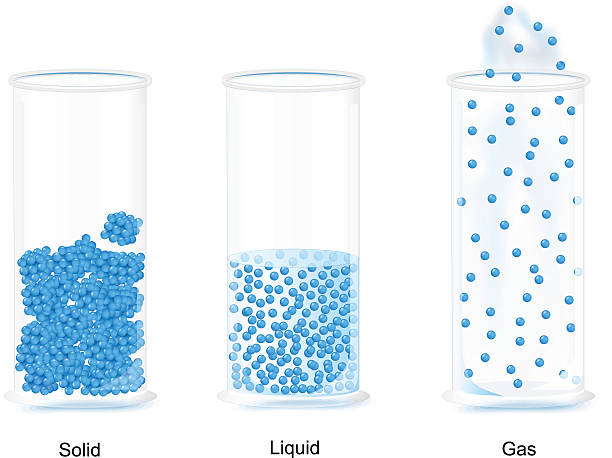

Unlike water particles in the liquid state, steam particles are widely separated and are free to move randomly. When injected steam contacts dry crop material it instantly condenses and bonds with other water molecules in the vicinity, which causes instant absorption into the dry crop material. Steam particles can penetrate through the tiny pores in plant material more effectively than water and soften the hay without making it too wet. This is the reason the DewPoint system works so efficiently.



How it Works

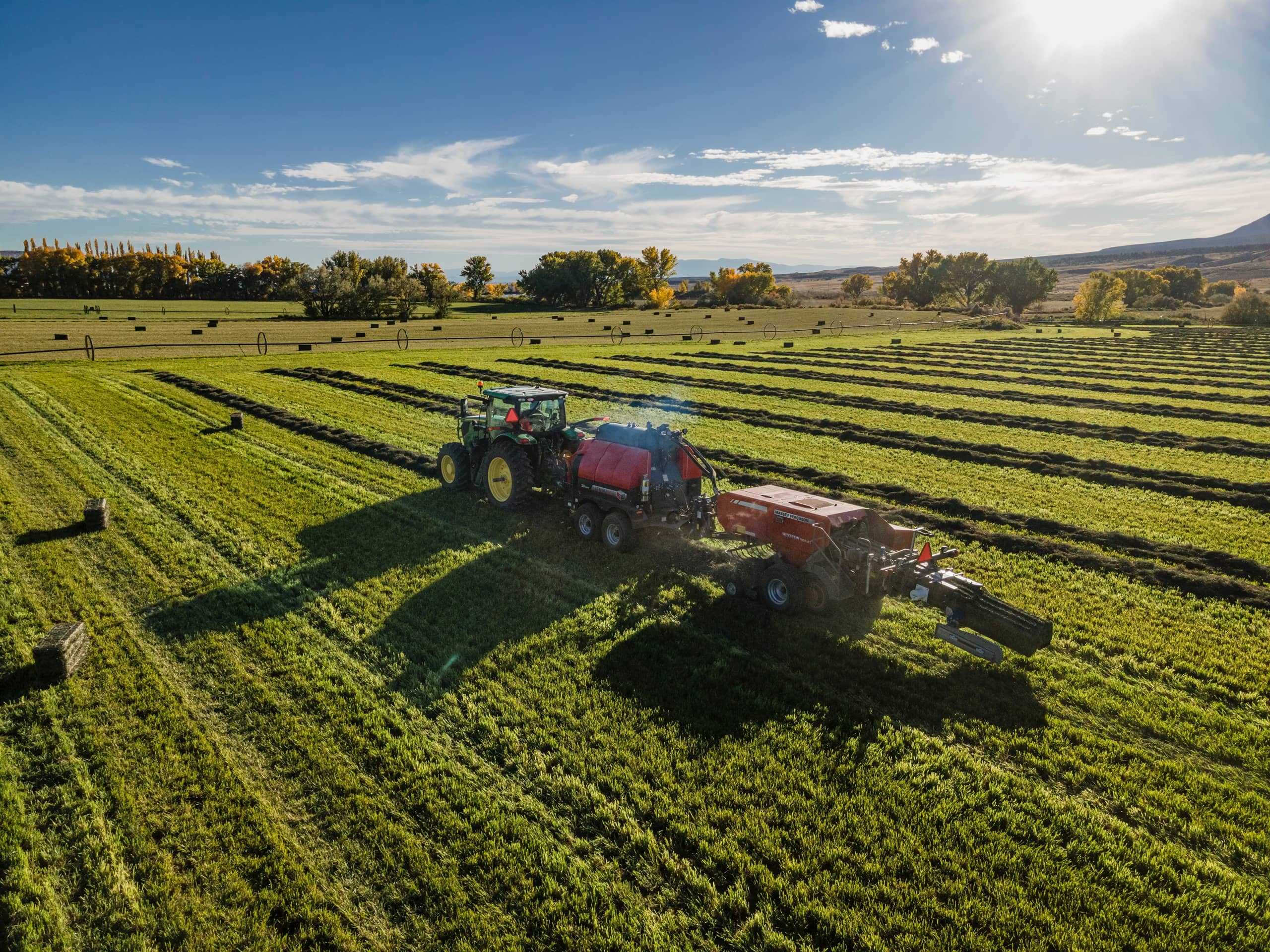

The DewPoint 331 generates steam which is injected into hay windrows. The machine is powered by the electrical and hydraulic system of the tractor. A diesel oil burner heats water inside the boiler to produce steam. This steam is transferred through hoses into custom manifolds mounted on the baler. The operator controls the steam rate and distribution in the baler.
Image Image

User Interface

The DewPoint 331 is controlled by the operator in the tractor cab. The DewPoint 331 display automates most of the machine functions to make it easy and simple to use. The display allows farmers to make steam rate and steam distribution adjustments on the fly as needed.

Where Is The Steam Applied

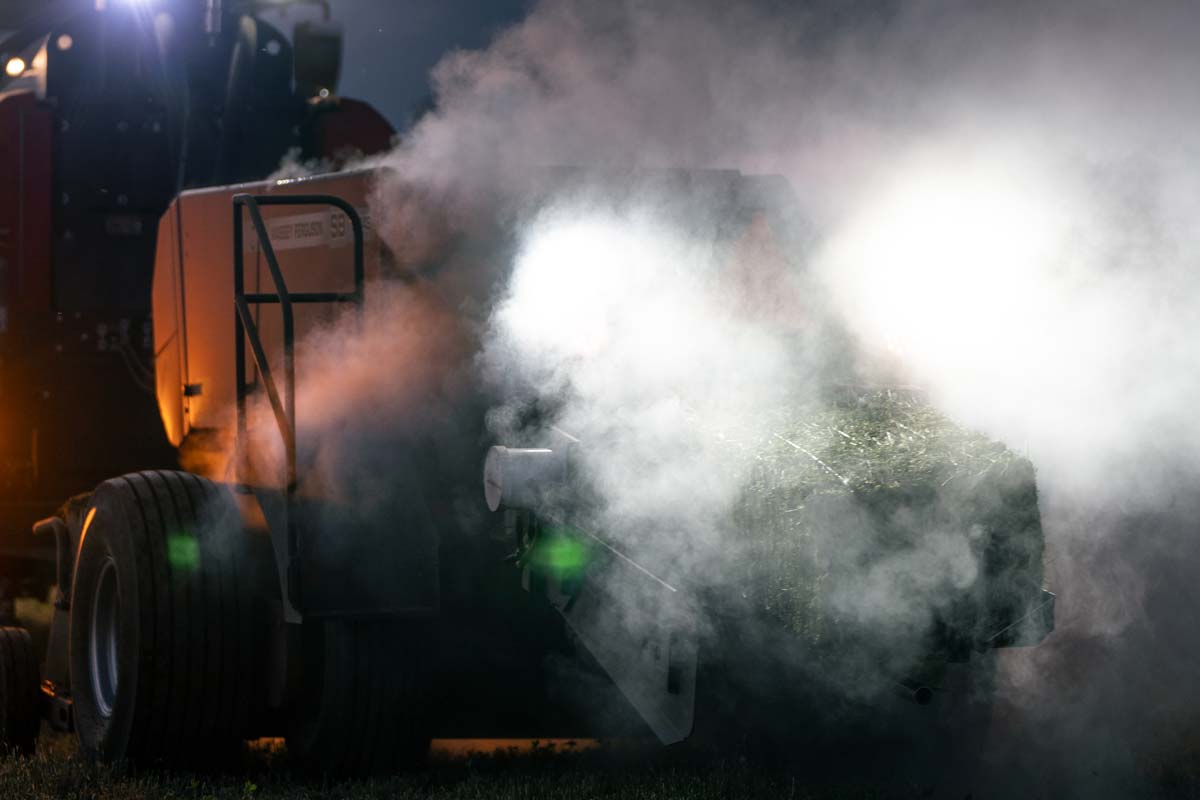

Steam produced by the DewPoint 331 is injected into the hay as it is lifted from the windrow by the baler pickup and further as it passes through the feed chamber of the baler. The treatment of the hay is accomplished by injecting steam through a series of distribution manifolds mounted in the baler. Bale moisture is monitored continuously and adjustments to the steam injection rate are made by the machine operator as needed to maintain desired bale moisture conditions at all times. Most baler steam hardware is made up of 4 manifolds that inject steam into the hay during the baling process.

The DewPoint 331 display allows the operator to control not only the amount of steam being injected into the hay but the distribution of the steam as well. For example, the top and bottom manifolds can each be controlled separately for different windrow conditions. Below are some common valve settings operators use.




Moisture Sensor

Typically, a Gazeeka Colt Moisture Sensor is used when baling with steam. The Gazeeka Colt is a non-contact moisture sensor that uses high frequency electromagnetic waves that are transmitted between two antennae. These waves pass through the entire width of the bale and give operators an accurate bale moisture reading in real time right in the tractor cab. By using the moisture readings from the Gazeeka Colt, operators of the DewPoint 331 can adjust steam rates to meet their desired moisture level and produce a consistent product.



Water Requirements

Water Softener or Reverse Osmosis Unit


Since the DewPoint 331 machine uses a boiler to generate steam, it’s important that you use softened or RO water to avoid building up scale inside the boiler.

Water Storage & Transportation


We recommend using a black water tank for treated water storage to avoid algae growth in the tank

Boiler Water Treatment


Whenever you fill the DewPoint 331 with water, you will also add ½ gallon of Boiler Guard®. This will maintain the inside of the boiler and keep it from building up scale

Water Transfer Pump



You may use a transfer pump
to quickly fill the supply water
tanks on the DewPoint machine.



Tractor & Hydraulic Requirements

0-2% Slopes
0-5% Slopes
0-10% Slopes

Minimum Engine Horsepower

100


125


150

Recommended Engine Horsepower

125


150


175


Hydraulic Requirements

Closed center hydraulic system is preferred.

Open center hydraulic system may require an oil cooler with the machine.


Minimum Recommended Hydraulic GPM

Open Center 15 GPM


Closed Center 15 GPM


Maximum Recommended Hydraulic GPM

Open Center 25 GPM


Closed Center N/A


1 Set of SCV's


3/8" Case Drain

Female hydraulic fitting that will fit the Parker 0303-050 male
fitting direct to tractor hydraulic tank

Electrical Requirements

12 Volt Auxiliary Port Required


Staheli West Harness 11546 & 11547

(Included)

Trailer Brake Controller

(Included)

Hydraulic Systems


Open center hydraulic systems will create more heat because they send the hydraulic pump’s full capacity to the DewPoint 331. The DewPoint 331 then bypasses all unnecessary flow back to the tractor. If an operator has the optionto run hydraulic pumps coupled at low rpm’s or run one pump at higher rpm’s, they should run one pump at higher rpm’s. Turning down the flow on the SCV will create more heat within the tractor and is therefore not a good option. The hydraulic oil cooler will sufficiently cool the oil.


Closed center hydraulic systems will create less heat because they send only the necessary GPM to the DewPoint 331.
Closed center hydraulic systems are preferred for this reason.

The Results

More Productivity

Typically, baling with steam allows farmers to bale high-quality hay for 12-24 hours per day. Being able to open up the baling window means that 1 DewPoint setup can typically replace 2-4 conventional baler setups. Being more productive with less equipment and manpower means less capital, fewer maintenance expenses, and lower labor costs.


Reduced Crop Loss

There is nothing worse for a hay producer than to have nice, green, leafy hay on the ground and not be able to put it up with proper moisture conditions. Many farmers are forced to bale dry hay for many reasons. Baling hay too dry shatters the crop material and increases leaf loss. With steam you will NEVER bale hay too dry again!

Higher Hay Quality

With the exception of extreme weather events and rain, baling with steam will essentially eliminate lower grades of hay. Even with some rain damage, farmers using the DewPoint 331 are still able to produce a leafy Grade 2 hay or better. Some of our small bale customers say they have very little grade 3 and 4 hay now. Being able to produce a large amount of premium and grade 1 hay with steam has significant financial benefits.


Better Flakes

One of the things producers and hay buyers notice instantly is that steamed hay feels different than hay baled with dew. Flake conformation on steamed hay is superior to that of hay baled with dew. When feeding horses or livestock, you will notice that the flakes hold together very well during handling and feeding.

Dust Reduction

Dusty hay can cause harm to the respiratory systems of horses. In fact, some horse farms use small steamer boxes to steam each bale as they feed it to their horses to minimize hay dust. Using the DewPoint 331 to bale hay in the field reduces hay dust in the bale. Even in grasses, where dust is an issue, baling with the DewPoint 331 Steamer dramatically decreases the amount of dust in the hay. Being able to market this aspect of your product could go a long way with some of your equine customers.


Increased Round Bale Density

If you are using steam to bale round bales, you can expect to produce a leafier bale with higher density. Through our preliminary round bale testing, we have seen exceptional leaf retention and bale density increases.


More Productivity

Typically, baling with steam allows farmers to bale high-quality hay for 12-24 hours per day. Being able to open up the baling window means that 1 DewPoint setup can typically replace 2-4 conventional baler setups. Being more productive with less equipment and manpower means less capital, fewer maintenance expenses, and lower labor costs.


Reduced Crop Loss

There is nothing worse for a hay producer than to have nice, green, leafy hay on the ground and not be able to put it up with proper moisture conditions. Many farmers are forced to bale dry hay for many reasons. Baling hay too dry shatters the crop material and increases leaf loss. With steam you will NEVER bale hay too dry again!


Higher Hay Quality

With the exception of extreme weather events and rain, baling with steam will essentially eliminate lower grades of hay. Even with some rain damage, farmers using the DewPoint 331 are still able to produce a leafy Grade 2 hay or better. Some of our small bale customers say they have very little grade 3 and 4 hay now. Being able to produce a large amount of premium and grade 1 hay with steam has significant financial benefits.


Better Flakes

One of the things producers and hay buyers notice instantly is that steamed hay feels different than hay baled with dew. Flake conformation on steamed hay is superior to that of hay baled with dew. When feeding horses or livestock, you will notice that the flakes hold together very well during handling and feeding.


Dust Reduction

Dusty hay can cause harm to the respiratory systems of horses. In fact, some horse farms use small steamer boxes to steam each bale as they feed it to their horses to minimize hay dust. Using the DewPoint 331 to bale hay in the field reduces hay dust in the bale. Even in grasses, where dust is an issue, baling with the DewPoint 331 Steamer dramatically decreases the amount of dust in the hay. Being able to market this aspect of your product could go a long way with some of your equine customers.


Increased Round Bale Density

If you are using steam to bale round bales, you can expect to produce a leafier bale with higher density. Through our preliminary round bale testing, we have seen exceptional leaf retention and bale density increases.


Higher Leaf Retention

University studies show that baling with steam cuts leaf loss by 58% compared to baling with a good natural dew. The Researchers at the University of Wisconsin performed a study on baling with steam during the day compared to baling with a good natural dew at night. They state, “steam-rehydrated bales indicated that leaf retention on the stems was superior to that of bales formed with [natural] dew rehydration.”


Bale Weight

On average, baling with steam increases bale weight by 5-10% due to increased leaf retention. Jeff Wood, a steamer owner from Utah states, “I figure I’ve picked up at least 100-150 lbs. a bale. I used to think when I first looked at it ‘well it’s all water weight,’ but it’s not. You look at the leaf in those bales and you understand exactly where it’s coming from.”


Higher Productivity

With steam, farmers can bale quality hay whenever their hay is dry, which increases their baling window and makes them more productive. One DewPoint-equipped baler can replace 3-4 conventional balers depending on local atmospheric conditions. That means less capital, fewer maintenance expenses, and lower labor costs.


Higher Yield

With steam you can cut more acres of hay knowing that you will be able to put it up. Being able to get the water back on the fields quicker adds valuable growing days when the weather is warmest. In some cases, our customers have gained an entire extra cutting.


Higher Quality and Consistency

Not only does the steamer increase the quality and often the value of your hay, it also allows you to make consistent hay from the first bale to the last.


Rained-on Hay

Baling with steam will allow you to make quality hay around the clock in order to beat storms. However, if your hay does happen to get rained on, steam can dramatically improve the quality of the rained-on hay.


Improved Lifestyle

We are proud to know that the DewPoint is changing the lives of farmers all over the world. Baling with steam allows you to schedule your farming operations and your life in a more consistent and controlled manner. There is peace of mind knowing that you’re going to be able to put up your hay even if mother nature doesn’t provide natural dew.
